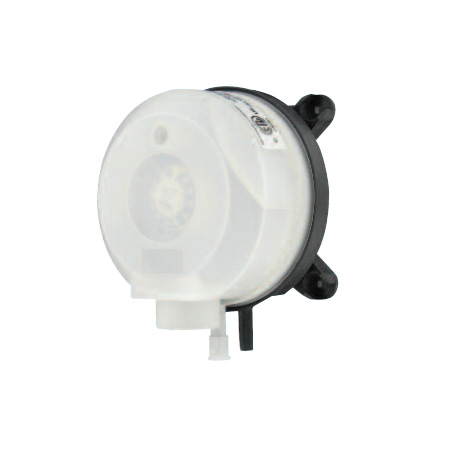

产品名称： EDPS系列压差开关
产品型号： EDPS

符合UL508，材质符合UL94VO

介质：空气和不易燃，兼容的气体。
材质：隔膜材料：硅。外壳材料：开关体：PA 6.6，封面：聚苯乙烯。材料UL94 V0评级。
温度限制：过程和环境温度从-4到140°F（-20到60℃）。
压力限制：最大。工作压力：40“WC（10千帕）的所有压力范围。
开关：单刀双掷（SPDT）。
开关额定：Max.1.0 A /250 VAC，50-60赫兹，最大开关频率：6次/分。
电气连接：推入式螺钉端子。 1/2“NPT连接。M20X1.5与电缆应力消除可选。
过程连接：5/16“（7.94毫米）直径的管子外面，1/4”（6.0毫米）直径的管子的内部。
安装方向：垂直，带压连接指向下方。
开关寿命：超过106开关操作。
重量：5.6盎司（160克）。
封装：NEMA13（IP54）。
认证：CE，ROHS，ETL批准UL508和CSA C22.2＃14

选型表：

型号                         特性

EDPS-08-1-N Adjustable differential pressure switch, range .08-1.20" w.c., with 1/2" NPT connection.
EDPS-04-1-N Adjustable differential pressure switch, range .12-1.60" w.c., with 1/2" NPT connection.
EDPS-03-1-N Adjustable differential pressure switch, range .20-2.00" w.c., with 1/2" NPT connection.
EDPS-05-1-N Adjustable differential pressure switch, range .80-4.00" w.c., with 1/2" NPT connection.
EDPS-06-1-N Adjustable differential pressure switch, range 2.00-10.00" w.c., with 1/2" NPT connection.
EDPS-07-1-N Adjustable differential pressure switch, range 4.00-16.00" w.c., with 1/2" NPT connection.
EDPS-08-1-N-C Adjustable differential pressure switch, range .08-1.20" w.c., with 1/2" NPT connection and installer kit.
EDPS-04-1-N-C Adjustable differential pressure switch, range .12-1.60" w.c., with 1/2" NPT connection and installer kit.
EDPS-03-1-N-C Adjustable differential pressure switch, range .20-2.00" w.c., with 1/2" NPT connection and installer kit.
EDPS-05-1-N-C Adjustable differential pressure switch, range .80-4.00" w.c., with 1/2" NPT connection and installer kit.
EDPS-06-1-N-C Adjustable differential pressure switch, range 2.00-10.00" w.c., with 1/2" NPT connection and installer kit.
EDPS-07-1-N-C Adjustable differential pressure switch, range 4.00-16.00" w.c., with 1/2" NPT connection and installer kit.
EDPS-08-2-N Adjustable differential pressure switch, range .08-1.20" w.c., with M20 connection.
EDPS-04-2-N Adjustable differential pressure switch, range .12-1.60" w.c., with M20 connection.
EDPS-03-2-N Adjustable differential pressure switch, range .20-2.00" w.c., with M20 connection.
EDPS-05-2-N Adjustable differential pressure switch, range .80-4.00" w.c., with M20 connection.
EDPS-06-2-N Adjustable differential pressure switch, range 2.00-10.00" w.c., with M20 connection.
EDPS-07-2-N Adjustable differential pressure switch, range 4.00-16.00" w.c., with M20 connection.
EDPS-08-2-N-C Adjustable differential pressure switch, range .08-1.20" w.c., with M20 connection and installer kit.
EDPS-04-2-N-C Adjustable differential pressure switch, range .12-1.60" w.c., with M20 connection and installer kit.
EDPS-03-2-N-C Adjustable differential pressure switch, range .20-2.00" w.c., with M20 connection and installer kit.
EDPS-05-2-N-C Adjustable differential pressure switch, range .80-4.00" w.c., with M20 connection and installer kit.
EDPS-06-2-N-C Adjustable differential pressure switch, range 2.00-10.00" w.c., with M20 connection and installer kit.
EDPS-07-2-N-C Adjustable differential pressure switch, range 4.00-16.00" w.c., with M20 connection and installer kit.
